Creating a vCloud Air OnDemand endpoint in vRealize Automation

In a previous post I describe how creating a vRealize Automation (vRA) endpoint to a vCloud Air OnDemand resource didn’t work.  At that time, you could only create an endpoint to a vCloud Air subscription resource.

Yesterday I received a tip on how to get it working so I thought I’d share it here.  It will probably be a KB article soon, but I hope this helps until then.

The URL endpoint was the part that was giving me issues.  I tried several combinations but none of them worked.  It turns out that the correct URL is:

https://region-name.vchs.vmware.com/api/compute

Getting the vCloud Air endpoint info

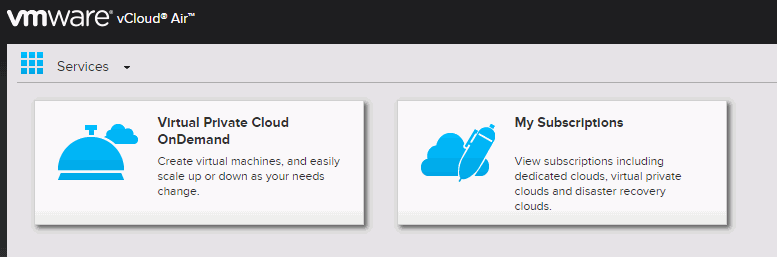

Log into the vCloud Air portal at https://iam.vchs.vmware.com and select “Virtual Private Cloud OnDemand”.

2015-02-10_10-53-48

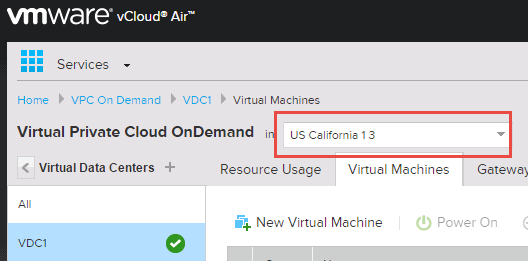

Select the region where you want to point the endpoint to.  Here I’m selecting “US California 1 3” (there is a space between the 1 and 3).

2015-02-10_10-54-17

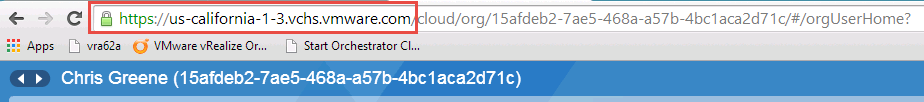

You can get the region name by looking at your the URL:

2015-02-10_10-55-11

For this region the name is “us-california-1-3”.  Next we need to get the vCloud Director organization.   Right-click on an org vDC and select “Manage Catalogs in vCloud Director”:

2015-02-10_10-54-36

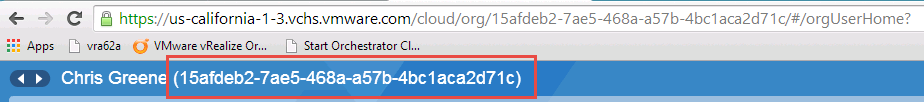

Here you can see that my organization name is “15afdeb2-7ae5-468a-a57b-4bc1aca2d71c”.  You can copy the name from the URL.

2015-02-10_10-55-11

Creating the vRA Endpoint

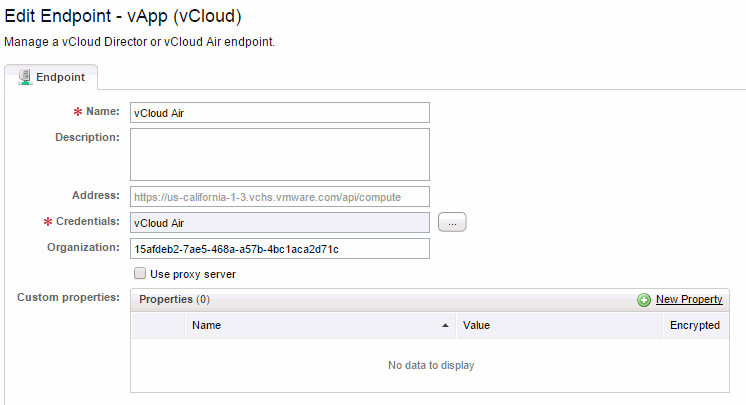

Now that we have all the info we need, we can create the vRA endpoint by logging into the vRA interface and going to Infrastructure > Endpoints > New Endpoint > Cloud > vApp (vCloud).

Address: https://us-california-1-3.vchs.vmware.com/api/compute
Credentials: Same as you use to log into the vCloud Air portal.
Organization: 15afdeb2-7ae5-468a-a57b-4bc1aca2d71c

2015-02-10_11-05-07

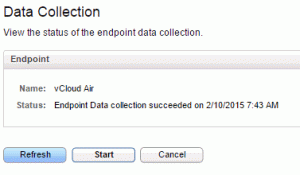

Now performing a data collection should succeed:

2015-02-10_11-05-22

You can then proceed to create your fabric groups, reservations, blueprints, etc and test out provisioning to vCloud Air from vRA.
